YSL-200 Hydraulic Water Well Drilling Rig

YSL-200 Hydraulic Water Well Drilling Rig

Applications
The YSL-200 hydraulic water well drilling rig is a multi-function crawler-mounted drilling rig installed with hydraulic drive system and power head (top drive). Aside from water well construction and geothermal energy borehole construction, the water well drilling machine is applicable for drilling large diameter vertical hole and inclined hole in the geotechnical engineering for hydropower project, railway, highway, and urban foundation. In addition, our hydraulic water well drilling rig can also be used for the construction of grouting hole for reinforcement, small-scale foundation pile hole, mini pile hole, etc.

This range of crawler mounted water well driller supports multiple drilling technologies, including standard DTH hammer drilling, long auger drilling, mud circulation drilling, drilling with casing pipe, roller bit drilling, hydraulic hammer drilling, circulation-fluid free auger drilling, mud circulation drilling with casing pipe, DTH hammer drilling with by air, and some others.

Features
1. The hydraulic water well drilling rig is engineered with powerful drilling capacity, enabling wide application, fast drilling speed, optimal accident handling capacity, and high drilling efficiency.
2. The drilling speed of the water well drilling machinery can be mechanically or hydraulically controlled, which makes the product suitable for multiple drilling methods, such as DTH hammer drilling, drilling with casing pipe, rotary drilling with casing pipe, etc.
3. Thanks to the extension mechanism for the main shaft, the drilling tool can be well protected. In addition, the direction of the power head and the orifice can be changed for wide drilling angle range.
4. Engineered with hydraulic clamping and breakout device, the hydraulic water well drilling rig realizes automatic breakout, which helps to reduce both the non-productive operation and the labor intensity.
5. The drilling tool is mounted on the crawler, thus the movement of the product is quite easy and convenient.
6. For stable overall performance and long lifespan, we particularly purchase the main elements from well-known suppliers home and abroad.

Technical Parameters of Hydraulic Water Well Drilling Rig
Hole Depth 150-200m
Hole Diameter 125-350mm
Drill Pipe Specifications Ф89×3000/6000mm, Ф114×3000/6000mm
Power Head Output Rotation Speed (forward and reverse) 48, 95, or 190rpm
Power Head Max. Output Torque 8000Nm
Power Head Feeding Stroke 3500mm
Max. Power Head Lifting Capability 150kN
Max. Power Head Thrust Force 100kN
Mast Sliding Stroke 3500mm
Gradeability 20°
Diesel Engine Power 125kW
Weight 8600kg
Dimension 6100×2250×3000mm

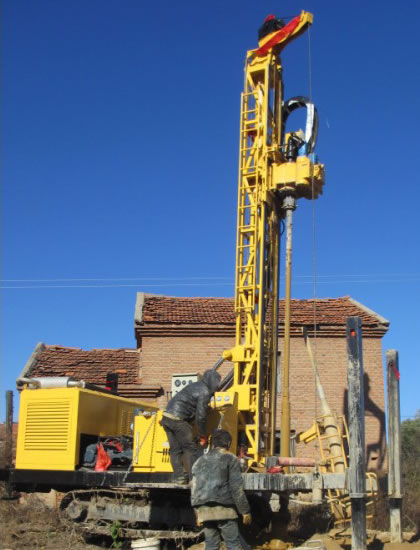

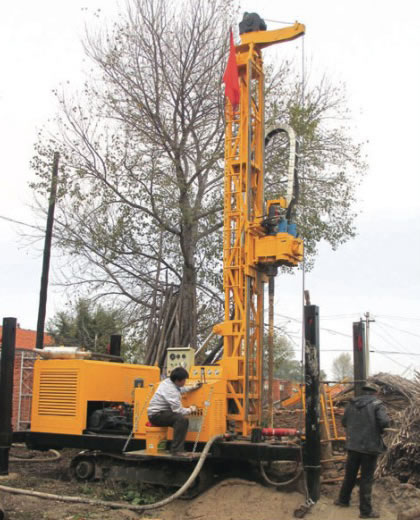

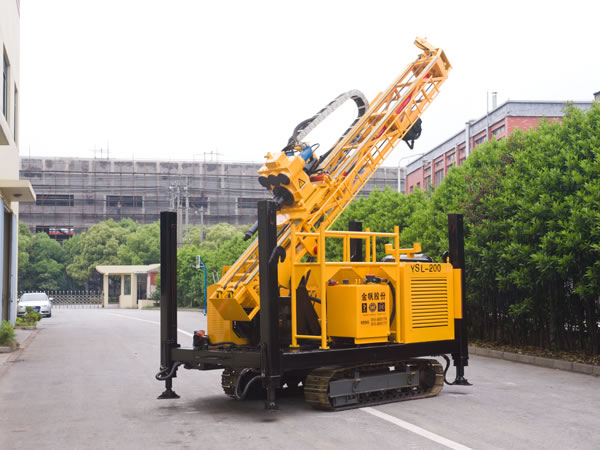

Photos
