Hydraulic Surface Core Drilling Rig

Hydraulic Surface Core Drilling Rig

Application
YDX-600 hydraulic surface core drilling rig is equipped with fully hydraulic driven power head. It is an ideal diamond core drilling solution in metal and nonmetal mine exploration field. It can also be used to create holes with a wide range of inclination angle, from vertical holes to horizontal holes. In addition, it is used for hole-making in exploration of hydrology and petroleum and natural gas fields, for cement grouting in dam construction industry, and for hole-drilling in tunnels, etc.

Features
1. The drilling equipment has a long feed travel, which helps shorten the time required for drill rod mounting, reduce the reversion frequency of the drill rod, and avoid block during the core drilling work. Thus, the drilling efficiency can be improved.
2. With high rotary speed, a felicitous speed range and large torque at low speeds, the core drilling rig can meet the requirement of various drilling methods, like small diameter diamond bit core drilling, large diameter carbide bit core drilling, and so on.
3. Simple, convenient, flexible and reliable operations greatly reduce operators' working intensity. Meanwhile, an extra slope drill tower is not required while boring a slope hole. The drill rod can be lifted in one time.
4. The special chassis design allows the hydraulic core drilling rig to move conveniently and quickly. Thus, the preparing time can be enormously shortened.
5. The main hydraulic parts, such as the hydraulic pumps, hydraulic motors and quick pipe joints, of the drilling rig are all acquired from international famous enterprises. This ensures the stable and reliable performance of the equipment and long service life as well.

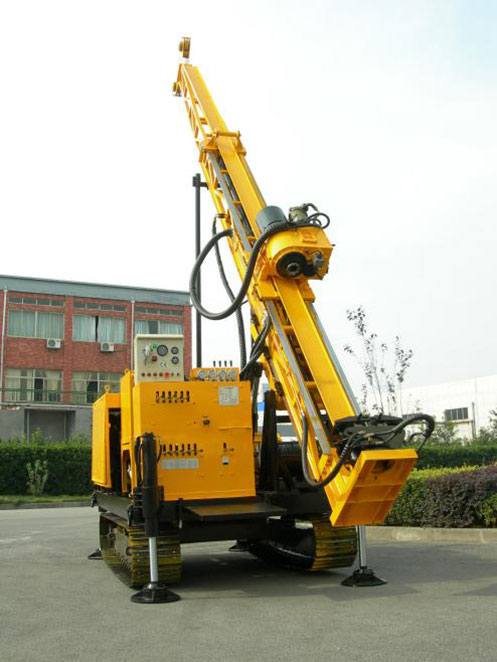

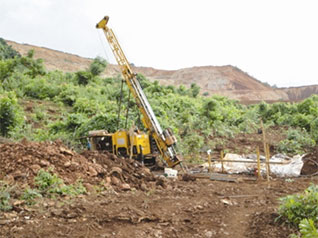

6. We can offer drilling equipment in various forms, such as skid mounted, trailer mounted and crawler mounted ones, for customers to choose from.
Skid mounted type has the advantages like good mobility, small size and light weight, so it is convenient for disassembly and assembly as well as transportation. It also suitable for lineate remote operation.

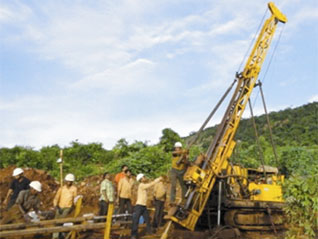

Trailer and crawler drilling rigs has better mobility and transportability as compared with skid type, and crawler type equipment offers precise hole center positioning.

Specifications

1. Working Range
(A) Drilling depth with rod diameter NQ: 500 m
(B) Drilling depth with rod diameter BQ: 600 m
2. Power Head
(1) Rotary speed / rotational torque
I. Rotary speed / rotational torque: 94~135 Rpm / 3200~2040Nm
II. Rotary speed / rotational torque: 203~289 Rpm / 1490~955 Nm
III. Rotary speed / rotational torque: 310~441 Rpm / 979~625 Nm
IV. Rotary speed / rotational torque: 663~945 Rpm / 457~292Nm
(2) Feed travel: 3500 mm
(3) Thrust Force: 40 kN
(4) Lifting Capability : 58kN
3. Hydraulic winch
Main winch Hoisting capacity : 54 KN
Wire line winch Hoisting capacity : 12 KN
4. Mast (derrick) height (from crown to ground level): 8.5m
5. Diesel Engine (Power/Rotate Speed): 75kw / 2200rpm
6. Total weight of the rig: 6500kg
7. Mud Pump (Optional): BW-150
8. Chassis of Drilling Rig: Skid / Trailer / Crawler Mounted (According to customer's requests)

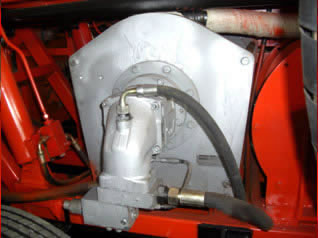

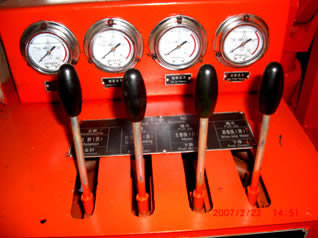

Original Imported Operation Valve
Original Imported Main Winch

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional hydraulic surface core drilling rig manufacturer in China, we at Jinfan also provide hydraulic geothermal drilling rig, hydraulic jet-grouting drilling rig, hydraulic crawler drilling rig, underground drilling rig, hydraulic crawler water well drilling rig, and more.
