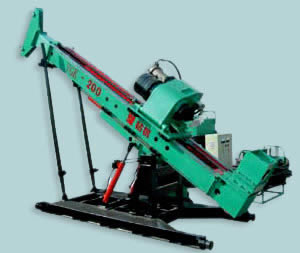

Hydraulic Underground Exploration Drilling Rig

Hydraulic Underground Exploration Drilling Rig

Application
YGK hydraulic underground exploration drilling rig is equipped with a full hydraulic operated top drive power head and is designed for core drilling in geological exploration in tunnels and galleries.

Features
1) The hydraulic underground exploration drilling rig is equipped with world-famous brand hydraulic components (hydraulic motor, hydraulic pump and quick oil pipe joint, etc.), so it has stable and reliable performance and long service life.
2) Building block type structure design provides the drilling equipment with advantages like convenient mounting and dismounting as well as transportation. Also, it can achieve remote control, so easy to use!
3) It has a wide range of rotary speed, and is suitable for various drilling methods such as carbide bit drilling and diamond bit drilling etc.
4) This drilling rig has a complete range of functions, great drilling capability, wide range of application, rapid drilling speed and high drilling efficiency, and is easy to operate as well.

Specifications

Rig Type YGK-100 YGK-200 YGK-300 YGK-500
Drilling Depth(m) 100/150 (Horizontal/Vertical) 200/300 (Horizontal/Vertical) 300/400 (Horizontal/Vertical) 500/600 ((Horizontal/Vertical)
Drill Rod Diameter(mm) Φ71/50/43 Φ71/50/43 Φ71/50/43 Φ71/50/43
Hole Diameter(mm) Φ75/56 Φ75/56 Φ75/56 Φ75/56
Hole Angle -90~0~90º -90~0~90º -90~0~90º -90~0~90º
Output Rotation Speed(rpm) 0~600 0~1000 0~1000 0~1000
Maximum Output Torque(Nm) 1100 1500 2100 3000
Feed Travel of Power Head (mm) 1000/1800 1000/1800 1000/1800 1000/1800
Mast Slipping Stroke (mm) 800 800 800 800
Pull-up Capacity (kN) 40 50 50 65
Pull-down Capacity (kN) 20 30 30 35
Electromotor (Type/Power) Y180M-4/18.5 Y180L-4/22 Y200L-4/30 Y250M-4/55
Overall Dimension (Reduce type / m) 4.2×1.1×1.6 4.2×1.1×1.6 4.2×1.1×1.6 4.2×1.1×1.6
Weight (kg) 1300 1700 1900 2800

In addition to standard equipment, we can also design and manufacture underground drilling rig according to customers' requirements.
