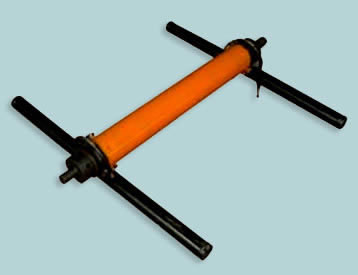

Pile Hammer Tool

Pile Hammer Tool

Jinfan has developed CG series pipe hammer tool to meet the demand of developing anchorage techniques used for construction of deep based pits and side slopes. The toll is composed of QCW series DTH hammer, air leg, and support, etc. It can hammer Φ30 - Φ60 mm anchor pipe into designed depth.

Due to the air leg which functions to support and feed the hammer, the pipe hammer tool can effectively counteract the counterforce and is an ideal solution to reduce labor strength.It can hammer long anchor pipes, thus raising pipe-hammering speed. It has also other features such as reliable supporting performance, convenient operation and good mobility. Anchor pipe clamp designed meticulously can hold anchor bar reliably at high speed, which helps ensure effective power transfer.

Specifications of Pile Hammer Tool

Type Hammer Air consumption (m/min) Air pressure (MPa) Impact work (J)
CG-1 QCW80 5 0.5-0.7 ≥140
CG-2 QCW100 8 0.5-0.7 ≥200
CG-3 QCW150 15 0.6-0.7 ≥380

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional drilling rig manufacturer in China. We provide engineering crawler drilling rig, anchor drill rig, and jet-grouting drilling rigs, etc. In addition, we also offer a wide range of drilling tools and drilling accessories, such as pipe hammer machine, external flush drilling rod, and wireline core barrel.
