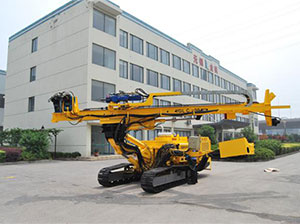

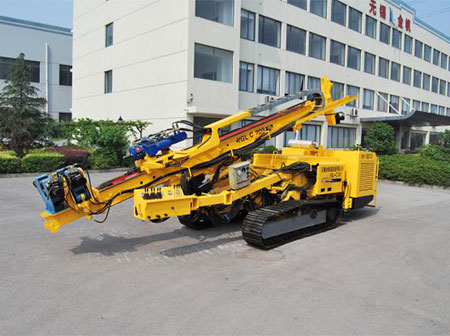

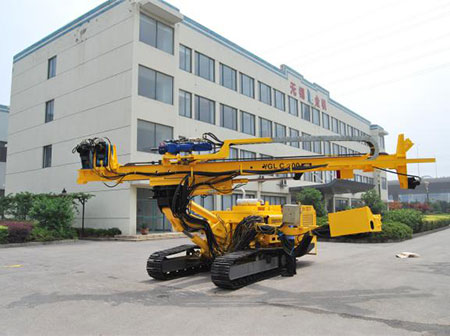

Hydraulic Impact Top Drive Crawler Drilling Rig YGL-C200

  • Hydraulic Impact Top Drive Crawler Drilling Rig YGL-C200
  • Hydraulic Impact Top Drive Crawler Drilling Rig YGL-C200

YGL-C200 Hydraulic crawler drilling rig can be applied to tunnel pipe-shed support drilling, grouting drilling, geothermal heat pump drilling, small foundation pile drilling, hydrologic well drilling, and blasthole drilling.
With the protection of hydraulic impact top drive casing, the rig can work in various ground conditions, such as on the unconsolidated formation, gravel layer, sand gravel, stone soil, detritus layer.

1. It works very well on unconsolidated formation, gravel layer, fractured formation, silt and sand, and can from the borehole easily.
2. Drilling process can be carried out at speeds several times exceeding that of traditional ones.
3. It adopts the power head imported from Germany Krupp, which features multi-angle and multi-directional drilling with a good performance.
4. An air compressor is unnecessary because there is no dust pollution when it drills into the layer of rocks, gravel or stone soil.
5. Equipped with special casing drilling technique, the rig can finish the pipe-shed  drilling quickly.
6. In complex formation, it can also perform double-pipe impact rotary drilling (single pipe + casing) and maintain the stability of the wall of the hole, facilitating the placement of grouting pipe and anchor cable.

Technical Parameters of Sonic Drilling Rig
Model YGL-C200
Borehole Depth 200m
Borehole Diameter Φ110-Φ250mm
Range of Horizontal Drill 750~2675~3950mm
Drill Angle -20~90°; -90~50°
Drill Head Rotary Speed(FR/RE) 28/55rpm ;55/110rpm
Max Output Torque of Drive Power Head 12500Nm
Impact Power 535Nm
Impact Frequency 1900/min
Drill Head Feeding Stroke 4000mm
Drill Head Max. Lifting Force 65KN
Drill Head Max. Thrust Force 45KN
Engine Model Diesel 6BTA5.9-C125
Engine Power Diesel 125KW/2200rpm
Chassis Model PD154
Overall Dimension(Drill Reduce Type) 7500×2300×2700mm
Drilling Rig Weight, appx. 12500kg

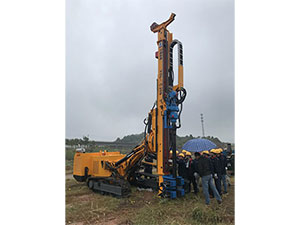

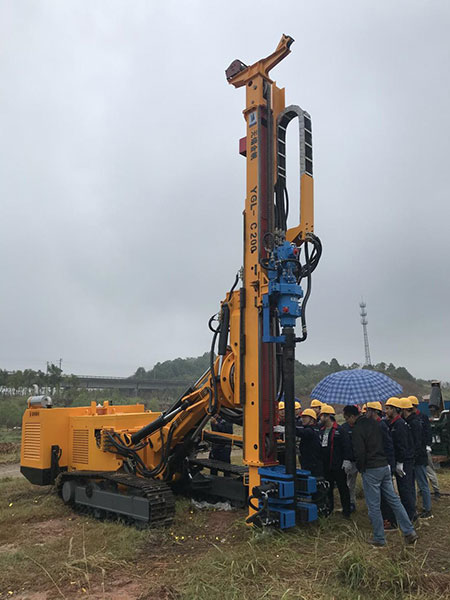

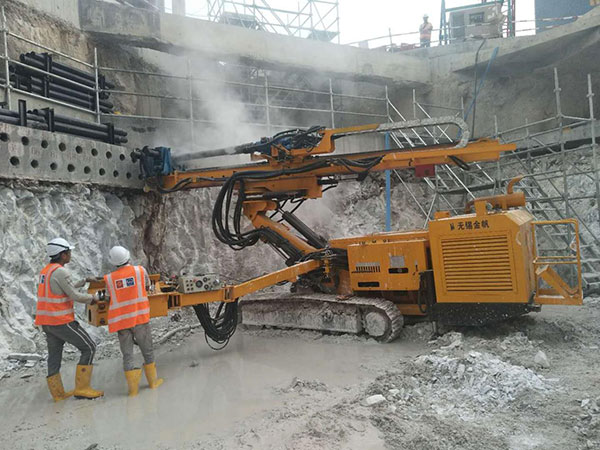

Crawler Drilling Rig Display
