Toa-Tone's Mini Sonic Drilling Rig

Ceremoniously Launched by Jinfan
The toa-tone's mini sonic drilling rig is ideal for use in the environmental investigation industry, borehole drilling for the GSHP system, geological investigation, water well and observation well drilling, and more.

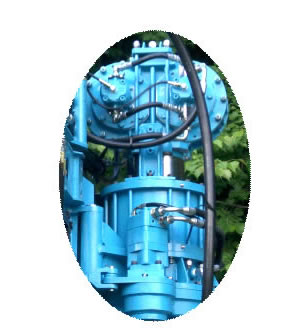

Features
JP-50 / JP-60 models
The Jinfan JP-50 and JP-60 models of our heavy duty drilling rig provide high power and reliable performance. They are ideal for use in environmental investigation and soil remediation areas and for drilling of monitoring well and geothermal well sites.
JP-50 drilling rig has an auxiliary power unit mounted on a base which is the same as that of JL-26, to provide even more power.
The ability to use biodegradable hydraulic oil can assure environmental safety at the job site.

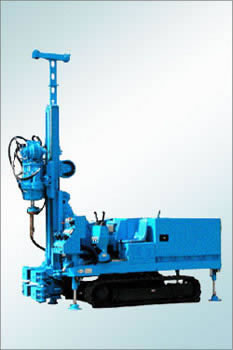

JL-10 / JL-26 models
JL-10 and JL-26 drilling rigs feature compact size and light weight, and they are ideal for use in the environmental investigation industry. Requiring no circulation fluid, they accomplish effective and speedy samplings at depths from 5 to 20 meters, as well as the excavation for shallow monitoring wells.
Less vibration and low noise of our drilling rig allows its operation in highly restricted areas.
As with the JP-50 and JP-60, use of biodegradable hydraulic oil enables our drilling equipment to be used with environmental protection at job sites.

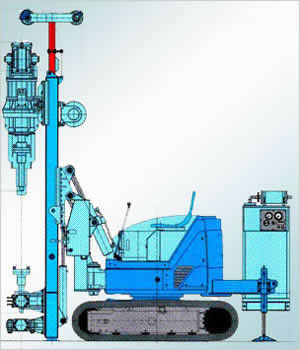

Dimensions and Specifications

Models JL-10 JL-26 JP-50 JP-60
Recommended Depth (m) 10 20 60 100
Sample/GSHP drill diameter (mm) 86 86 86/126 86/126
Rotation speed (min-1) 0-20 0-30/0-60 0-25/0-50 0-33/0-66
Torque (kN-m) 0.882 3.4/1.7 4.46/2.23 5.4/2.7
Frequency (cpm) 4000 4000 3870 4000
Vibration force (kN) 14.7 38 63 78.4
Feed/balance (kN) 17.1/34.3 20.6/87.8 20/93.2 39.2/98
Hoist (kN), single 3.4 3.9 6.9 6.9
Diesel Engine(kw) 7.4 19.3 37 40.7
Models JL-10 JL-26 JP-50 JP-60
Outside dimension During Working W  mm
L  mm
H  mm
900
2150
2980
1550
3061
3080
1550
3625
4205
1650
3672
4493
Outside dimension During transportation W  mm
L  mm
H  mm
700
2630
1840
1490
3130
2190
1550
4155
2450
1650
4257
2550
Approx. weight (kg) 1100 2650 4400 6200

In accordance with our policy of constant improvement, we reserve the right to amend design, materials, specifications and prices at any time without prior notice.

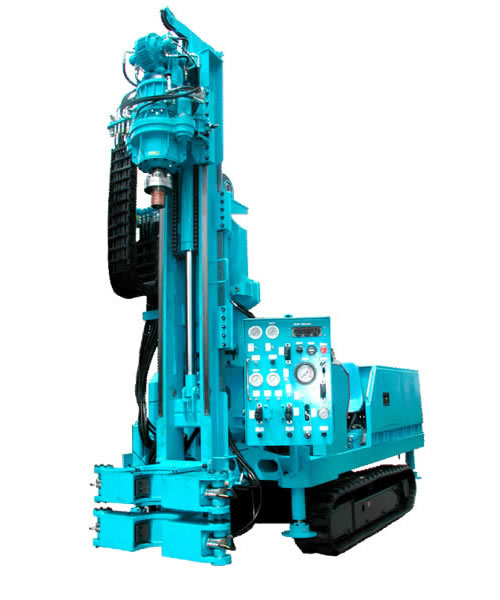

JP-50 Model The newest Model JP-60

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a toa-tone's mini sonic drilling rig supplier in China. Our primary products include geothermal drilling rig, engineering crawler drilling rig, anchor drill rig, exploration drilling rig, core drill, water well drilling rig, underground drilling rig, and jet-grouting drilling rig.
