YSL-300 Reverse Circulation Drilling Rig

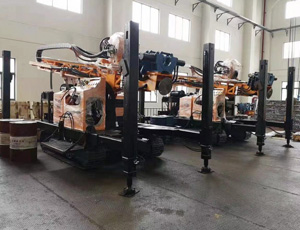

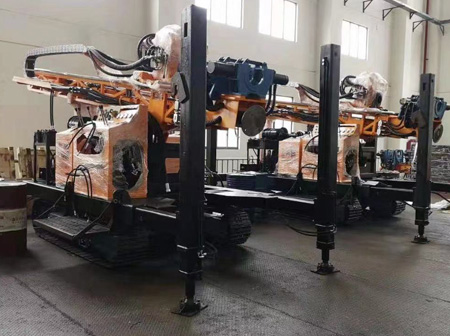

  • YSL-300 Reverse Circulation Drilling Rig

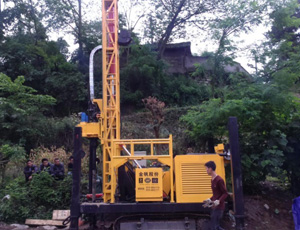

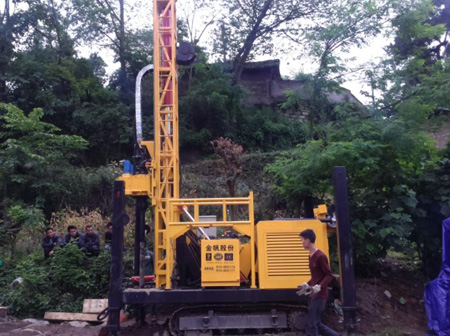

  • YSL-300 Reverse Circulation Drilling Rig

YSL-300 RC drill rig is mounted on a crawler chassis, driven by full hydraulic system, power head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling techniques way of the following:

  • Dry drilling
  • Down-the-Hole hammer drilling
  • Direct circulation- Mud Rotary
  • DTH hammer drilling with casing
  • Multi-medium reverse circulation composite drilling

YSL-300 reverse circulation drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole, small buildings foundation piles.


Technical specification
Model YSL-300RC
Drill rig weight (crawler mounted) kg 8500
Length × Width × Height (normal) mm 6750×2300×3000
Ambient Temperature Range °C -10～38
Nominal Drill Depth m 300
Drill Diameter mm 130～350
Drill head output
Output Rotation Speed rpm 55,110
Max Output Torque N.m 10000
Stroke of Power Head
Stroke mm 3500
Thrust Force kN 100
Lifting Capacity kN 150
Oil Pump
Output volume ml/r 63+63+25
Hydraulic Oil L-HM46
Tank Capacity L 220
Nominal Filtration Particle Size μm 10
Engine drive type 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base PD135XB
Walk Speed km/h 2.0
Unit Pressure MPa ＜0.05
Climb Ability ° ≤20
Winch
Lift Force KN 11
