Anchor Drilling Rig

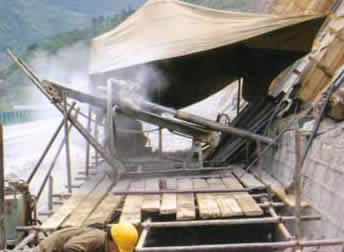

YG-30 anchor drill rig is used for drilling anchor holes in deep base pit of high-rise buildings and drilling jobs for special construction jobs like reinforcement of side slopes for water conservatory project, hydropower station project, railways and highways. It is especially used for making anchor holes for high position side slope protection and drainage holes.

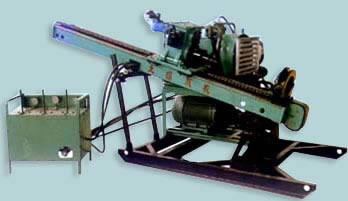

1. The anchor drilling rig is equipped with a fully hydraulic operated top drive power head. It is primarily composed of main machine, control panel and pump which are connected with each other through flexible joint. Hence, the drill rig features simple structure, convenient assembly and disassembly, and easy transportation.
2. Operating the drilling equipment through the centralized control panel ensures assure safety operation and on-site cleanliness.
3. The top drive power head comes with two speed levels - high and low speed. This meets the requirements of both DTH hammer drilling and carbide bit drilling methods.
4. International famous brand hydraulic parts make sure the anchor drill rig has high reliability and permanence stability.

1) Hole depth: 40-30 m
2) Hole diameter : 80-130 mm
3) Drilling rod (Diameter × Length): 50×1500 mm, 73×1500 mm
4) Hole angle range: 0-360º
5) Output speed of top drive power head: 24 -114 r/min
6) Output torque of top drive power head : 1500 Nm
7) Feed travel of top drive power head: 1800 mm
8) Maximum lifting capacity of top drive power head: 30 kN
Maximum thrust force of top drive power head: 15 kN
9) Electromotor power : 15 kW
10) Weight: Approx 550 kg
11) Overall dimension : 2700×1150×1400 mm

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional anchor drill rig manufacturer in China, Jinfan also offers hydraulic jet-grouting drilling rig, hydraulic crawler water well drilling rig, hydraulic crawler drilling rig, underground drilling rig, exploration hydraulic core drilling rig, and more.
