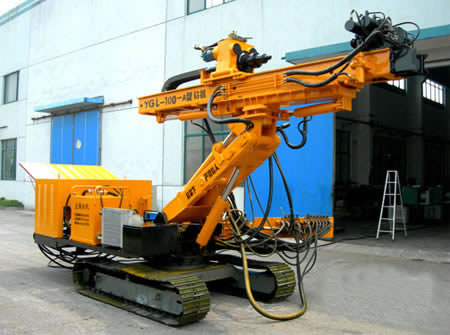

Hydraulic Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

Application

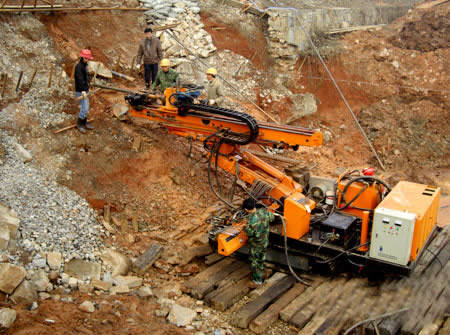

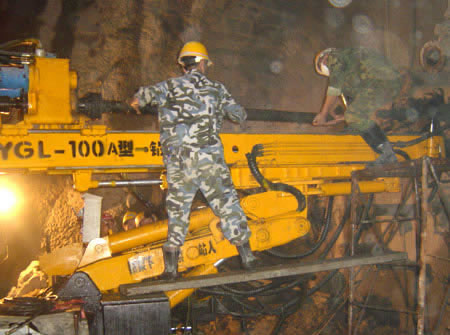

YGL-100A hydraulic crawler drilling rig comes with a hydraulic power head (top drive) and is multifunctional. It can be applied for drilling of large tonnage pre-stressed anchorage holes in areas like hydropower station, railway and highway construction, and construction of drainage holes. The drilling rig is also an ideal piece of equipment for subgrade strengthening, thus preventing landslide disaster and rock collapse as well as other geological calamities.

Features
1. With large rotary torque and long feed travel, the hydraulic drilling rig comes with high hole drilling speed and high working efficiency.
2. The output spindle of the power head is designed with an extension mechanism (Chinese patent number: ZL03222451.6), which effectively protects the drilling tools.
3. The power head of the drilling rig utilizes hydraulic gear-shifting mechanism which ensures quick, convenient and reliable gear-shift.
4. Features such as our hydraulic drill pipe clamp and wrench devices ease the workload of operators, as they are designed to accomplish tasks that typically had to be done manually.
5. The hydraulic crawler drilling rig is mounted on a track chassis with a turning platform mechanism, which makes moving and traveling convenient.
6. The key hydraulic elements are all acquired from national and international famous enterprises. This ensures the reliable performance and durability of the drilling equipment.
7. The machine is suitable for a variety of drilling technique and methods, such as the rotary drill, auger drill, air drive DTH hammer impact and so on.

Specification
1) Hole Depth: 150~80 m
2) Hole Diameter: φ130~250 mm
3) Drill Rod Standard: φ89×2000 mm
φ114×2000
4) Power Head Rotation Speed (forward / reverse): 40/80 rpm
5) Power Head Max Output Torque : 6000 Nm
6) Power Head Feed Travel: 2800 (or 3500 customized) mm
7) Max. Power Head Lifting Capability: 55 kN
8) Max. Power Head Thrust Force : 40 kN
9) Mast Sliding Compensating Stroke: 850 mm
10) Height Range of Horizontal Hole: 2100~3000mm
11) Turning Range of Platform: left 90º / right 20º or right 90º / left 20º
12) Climbing Ability: ≦20º
13) Engine Power (Either One)
       Electromotor: 37 kW
       Diesel: 71 kW
14) Overall Dimension (Reduce Type): About 6150×2000×2400mm
15) Total Weight: About 6000kg
16) Optional Parts:
      1) 1.1 Ton Hydraulic Winch / Tools Hoist (with Crown Pulley)
      2) Wet Mode Dust Cleaner Device
      3) Lineate Remote Moving Control Device
      4) Safety Emergency Stop Switch
      5) High Speed 4-speed Power Head:180rph

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

Jinfan is a professional hydraulic crawler drilling rig manufacturer in China. Besides engineering crawler drilling rig, we also offer core drill, water well drilling rig, exploration drilling rig, geothermal drilling rig, anchor drill rig, and more.
