Hydraulic Crawler Drilling Rig

This product has been discontinued and removed from our shelves.

Application

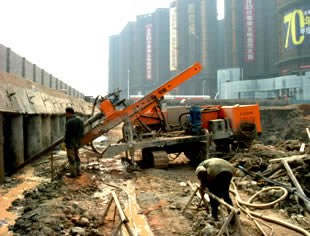

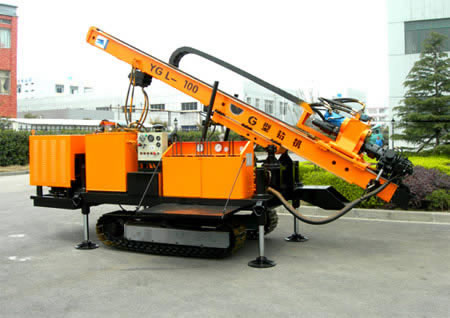

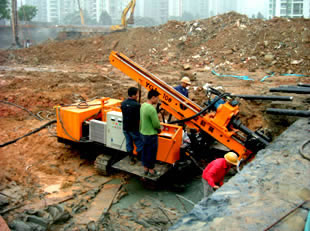

The YGL-100 drilling rig comes with a fully hydraulic power head (top drive) and crawler traveling mechanism. It has many uses, as for the drilling of anchoring holes for high rise buildings' deep basement foundation; drainage holes; large tonnage pre-stressed anchoring holes for various geotechnical engineering projects, including the side-slope construction of dams, railway and highway, etc.; guide holes for high pressure jet grouting in the gravel strata; and blast holes. This multifunctional drilling rig is also used for creating the anti-floating anchoring hole, the foundational reinforcing hole of interior architecture, the grouting reinforcing hole, the reinforcement hole of road or dam foundations, and the anchoring hole for landslide prevention projects.

Features
1. With large rotary torque and a long feed travel, the hydraulic drilling rig offers high hole drilling speed and high work efficiency.
2. The output spindle of the power head is designed with an extension mechanism (Chinese patent number: ZL03222451.6), which effectively protects the drilling tools.
3. The power head of the drilling rig utilizes a hydraulic gear-shifting mechanism which ensures quick, convenient and reliable gear-shifting
4. The hydraulic drill pipe clamp and wrench devices allows the drilling equipment to mechanically accomplish some operation procedures and thus reduces operators' work intensity greatly.
5. The hydraulic crawler drilling rig is mounted on a track chassis with a turning platform mechanism, making it easy to move and transport.
6. The key hydraulic elements used in our equipment we acquire from well-known and renowned national and international enterprises. This helps to ensure the quality, reliable performance and durability of our drilling equipment.
7. This machine is suitable for a variety of drilling techniques and uses, such as the rotary drill, auger drill, air drive DTH hammer impact, and so on.
8. The drilling rig can be installed with an optional rod lifting device to connect drill rods.

Specification
1) Hole Depth: 150~60 m
2) Hole Diameter: Φ150~250 mm
3) Drill Rod Standard : Φ89×3000 mm; Φ127×3000 mm
4) Power Head Rotary Speed (forward / reverse): 37/74; 84/168
5) Power Head Max Output Torque: 6000 Nm
6) Power Head Feed Travel: 2800 mm
7) Max. Power Head Lifting Capability: 55 kN
8) Max. Power Head Thrust Force: 40 kN
9) Mast Sliding Compensating Stroke: 500 mm
10) Turning Range of Platform: 360º
11) Climbing Ability: 20º
12) Engine Power (Either One)
       Electromotor: 37 kW
       Diesel: 71 kW
13) Overall Dimension (Reduce Type): About 5000×2000×2300mm
14) Total Weight: About 4000 kg
15) Optional equipment
       a) Wet method dust cleaner device
       b) High Speed 4-speed Power Head:180rph

Terms of Trade
1. MOQ: 1pcs
2. Delivery cycle: 0-7 months
3. Shipment port: Wuxi / Shanghai
4. Payment terms: Cash On Delivery
5. International markets: The United States, Mexico, Brazil, Colombia, Singapore, Malaysia, Indonesia, Australia, Russia, Ukraine, kyrgyzstan, Germany, France, Morocco, Armenia, Oman, Tanzania, Sri Lanka, India, Bangladesh, Pakistan, Congo, Sudan, and more.

As a professional hydraulic crawler drilling rig manufacturer in China, we also offer hydraulic geothermal drilling rig, underground drilling rig, exploration hydraulic core drilling rig, hydraulic crawler water well drilling rig, hydraulic jet-grouting drilling rig, and more.
